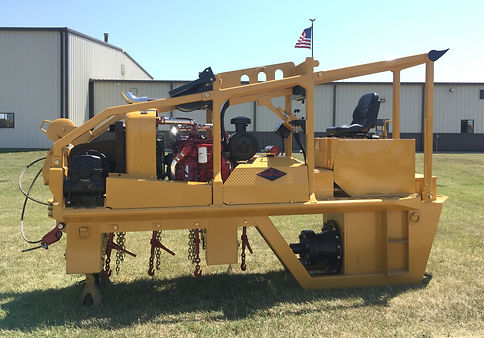

30-Inch Boring Machine
Specifications
Power Train
Hydraulic System
ENGINE
-
Cummins QSB 4.5
-
12VDC, 160 HP @2200 RPM
-
460 FT/LB Peak Torque
VARIABLE SPEED HYDROSTATIC TRANSMISSION
-
Low - 12 RPM (forward and reverse)
-
High - 27.5 RPM (forward and reverse)
MAXIMUM OUTPUT TORQUES
-
Low - 72,000 ft/lb - 12 RPM
-
High - 30,000 ft/lb - 27.5 RPM
PUMP
-
Twin Sauer Danfoss 90 Series Pumps
-
Continuous Rotation Pressure 5800 PSI
THRUST WINCH
-
Tulsa Winch RN30W 3750 PSI
-
Layer 1 - 57,000 lbs - 11 fpm line speed - 45' Cable Cap.
-
Layer 2 - 47,500 lbs - 13 fpm line speed - 99' Cable Cap.
-
Layer 3 - 42,852 lbs - 15 fpm line speed - 161' Cable Cap.
-
Layer 4 - 35,685 lbs - 17 fpm line speed - 233' Cable Cap.
-
Layer 5 - 31,756 lbs - 19 fpm line speed - 313' Cable Cap
FILTERS
-
Return 11 Micron
-
Press 11 Micron
GEARBOX
-
96:1
Work Range
-
30-54"
AUGER DRIVE
-
4-Inch Hex Drive
Dimensions
-
Height - 115.5"
-
Length - 184.5"
-
Width - 44"
-
Weight - 10,500 lbs
